Embedded access point IAP2300F-2N2-5T

WiFi2.4 GHzLAN

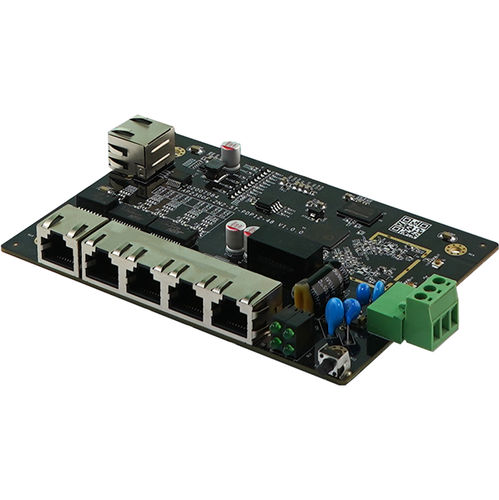

IAP2300F-2N2-5T-PDP12_36 Embedded Mounting 2.4G Wireless Single-band AP - Support 1 100M WAN, 4 100M LAN and 2 2.4G WIFI IPEX-1 generation antenna pedestal - Support four work modes including routing, AP, network bridge and client - Support DC power supply input and anti-reverse connection, input voltage: 24VDC (12～36VDC) - Support -40~75℃ wide operating temperature range Overview Overview of 3onedata Embedded 2.4G Wireless Single-band AP IAP2300F-2N2-5T-PDP12_36 IAP2300F-2N2 -5T-PDP12_36 is an industrial wireless AP. The product supports 1 100MB WAN, 4 100MB LAN and 2 WIFI IPEX-1 generation antenna pedestal, etc. It adopts embedded mounting, which can meet the requirements of different application scenes. The device supports four working modes: routing, AP, bridge and client. Support IEEE802.11b/g/ n wireless technology, wireless transmission rate up to 300Mbps; Support WPA, WPA2, WPA3 and other wireless encryption methods, with SSID hiding, wireless user isolation, MAC address filtering, ARP binding, DMZ settings and other security policies; Support for virtual APS, where a single AP device supports multiple SSIDs. RESET button can realize device reboot and one-key factory default restoration. The hardware adopts fanless, low power consumption, wide temperature and wide pressure design, through the strict test in line with the industry standards, can adapt to the harsh requirements of the industrial environment, can be widely used in rail transit, security, smart city, integrated pipe gallery, production automation, smart lamp pole and other industries.
