EN50155 network switch TNS5800D Series

managed12 ports20 ports

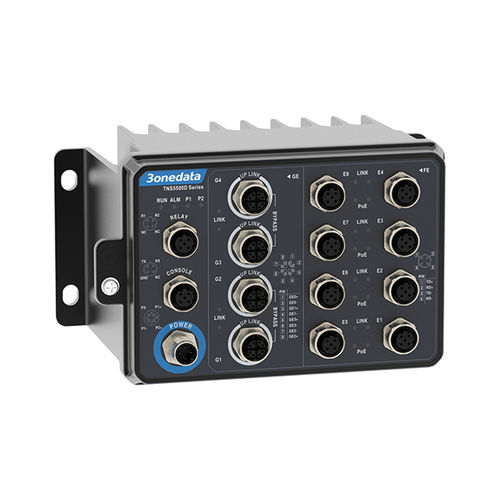

TNS5800D Series EN 50155 12/20-port Layer 3 Industrial PoE Ethernet Switch -Support 4 Gigabit M12 interfaces (with 2 groups of Bypass function), 8/16 100M or Gigabit PoE M12 interfaces (optional) -Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing function -Support 110VDC dual power supply, single input -Support IP67 protection grade -Support -40~75℃ wide operating temperature range TNS5800D series is layer 3 industrial Ethernet switch designed for rail transit. The product conforms to the requirements of industrial standard EN50155 and EN50121. Ethernet interfaces use firm and reliable M12 connectors which can adapt to usage scenario with vibration and shock. PoE power supply conforms to IEEE802.3af/at protocol standard, and it can power device over Ethernet, thus decreasing the cable connection of powered devices. This series has 4 products. They provide 110VDC power supply input and adopt wall mounting, which can meet the needs of different application sites. The network management system supports various network protocols and industry standards, such as static routing, RIP, VRRP, NAT, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS function, DHCP Server, IGMP Snooping, LLDP, port trunking, port mirroring, etc. It also possesses complete management functions, support port configuration, port statistics, port IP binding, access control, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc.; CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
