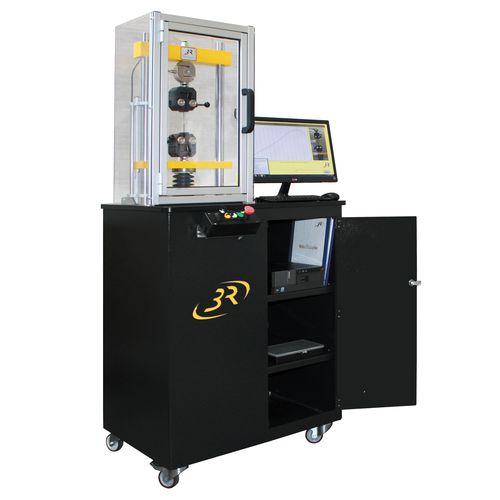

Universal testing machine RP 25 ATF

compressiontensilefor materials

Didactic universal testing machines for materials characterization Designed by the French leading manufacturer of laboratory testing machines Universal : for flexural, compression, hardness, stamping, tensile, shearing tests Multi-purpose : supplied with multiple fixtures : flexural, compression, tensile Rigid : the frame is build to withstand the maximum load Ergonomics : machine mounted on a wheeled storage cabinet Complete : supplied with a set of testing specimens Specifications : Sturdy two-column frame mounted on wheeled storage cabinet (easy to move) Distance between columns : 310 mm Load cell : Capacity 25 kN connected via USB (resolution ~1N, accuracy 0.5%) Displacement transducer : Stroke 300 mm, resolution 10 µm connected via USB Quick-release interface for easy bearings change out Force or displacement under servo control during tests Adjustable speed from 12mm/min to 170 mm/min Stroke : 300 mm Test and analysis under software control High resolution : 65,000 points Power : 800 W Power supply 230V + Ground Safety enclosure Weight : approximately 290 kg (press with Pc and supports) Dimensions : 1860 x 990 x 700 mm
