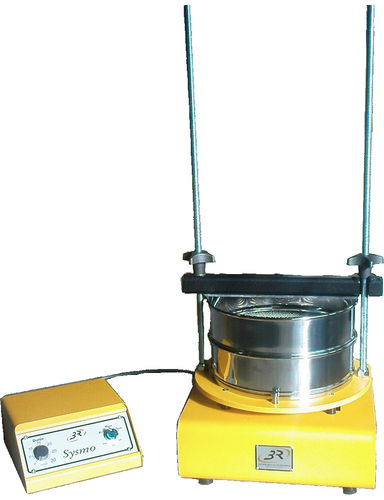

Wet sieving sieve shaker SYSMO

for pharmaceutical applicationscircular vibrating

Spécificities: Designed for sieves with diameter 200 - 250 - 315 mm Can hold 11 sieves of diameter 250 mm Sinusoidal alternated vibration movement with a programmed pause function (shocks simulation) and reverse of the rotation cycle Programmable time setting in order to reproduce exactly the sieving cycles Test time is set via a potentiometer on external remote control which allows the setting for complete sieving cycle setting (from 0 to 30 minutes), suspended timing period and vibration period. Electrical case apart from the frame, the electrical case can be fixed on a wall Sieves are held thanks to a lid which is fixed on the 2 poles by 2 screw nuts and it is locked by clamping the 2 handles (double fixing device) Available for dry or wet sieving tests. Technical data: Power supply: 220 V single phase Dimensions : 403 x 480 x 1167 mm Weight : 40 kg
