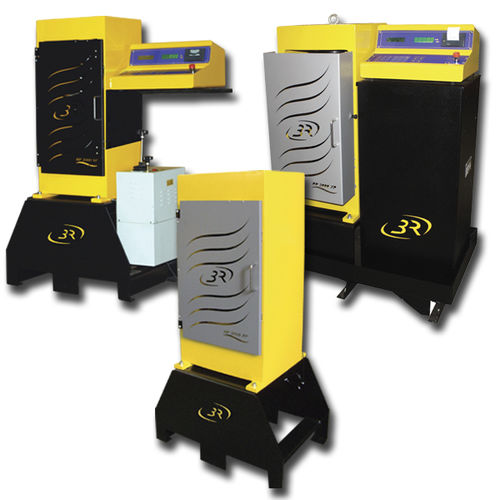

Compression testing machine Série XP: RP2000-3000XP

automaticfor building materialshydraulic

Automatic testing machine for compression tests on Cubes & Cylinders The chassis of the XP range is an extremely resistant monobloc chassis. Whether in 600, 2000 or 3000 kN force, it comes in 2 different configurations. Specifications : • Class 1 • High rigidity frame, controlled by footmeter • Designed according to the European testing machines standards • Hardened steel platens Ø 330 mm or 510 x 310 mm – Hardness > 58 HRC • Vertical clearance: 340 mm – 170 mm with wedges • Protection screen doors, with an automatic security sensor • Openwork legs designed for easy handling with forklift truck • Standards : EN 12390-4 The XP range frame is a cast in one piece frame extremely resistant. Wether in 600, 2000 kN or in 3000 kN force, there are 2 different setups to choose from : XP Compact : n this version, the Quantris frame and control panel are only one. This configuration presents de numerous advantages : reduced dimensions, starting up very easily done, without any connection, ergonomic working height, frame « forklift truck » studied, making transport and handling easier, waterproof bottom (in accordance with hydraulic machines legislations) in order to recover the hydraulic leakages. XP/P on leg : Mounted on one leg, in order to preserve an ergonomic working height, the XP/P frame is driven by an automatic Quantris, Techtris, Quantech or Quantium control panel. It is the solution for any laboratories which need to drive several frames (edges, tubings, pavements, …) from one and unique control panel.
