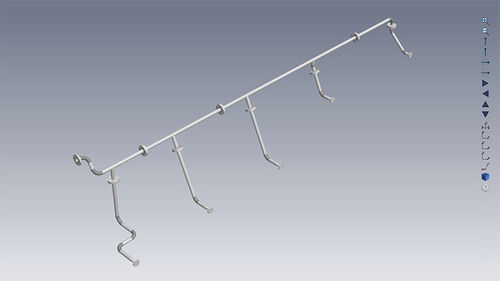

IsoBuilder is an intelligent solution for the import and editing of isometries that extracts all fabrication relevant data from the drawings. It provides the basis for all following calculations. Thanks to an integrative database all details regarding the pipeline elements are known. Hence the system can use the drawings to automatically generate all required information and lists that are required for the purchase and the fabrication of the order. In addition to the creation of part lists and welding lists this also includes the preparation of CNC-data. By conducting a logic test the integrity of each drawing can be examined, and errors can be discovered early. IsoBuilder supports a large number of interfaces to the common construction and coordination systems, and can thus be integrated into an existing environment without problem. The interfaces are constantly expanded and in part adapted to individual requirements. Each drawing is split into individual spools according to customizable criteria to suit your needs. Examples would be double-flanged connections, assembly seams, valves, or maximum size and weight. The time and costs to fabricate and install the spools can be calculated early on. For each individual spool a worksheet for fabrication is generated. In order to improve legibility on the worksheet the connections can be displayed in a non-scaled fashion. Features Creation of Isometric Drawings Integrated Element Database Interfaces to common 3rd Party Systems Automatic Spool Splitting Generation of Detailed Processing Data & Lists
