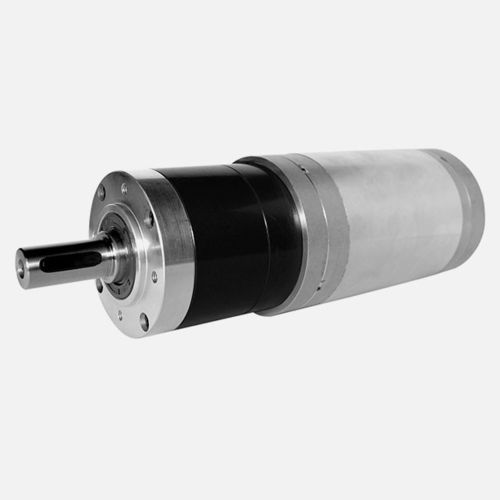

Brushless DC gear-motor 80BSA Seriesthree-phaseplanetarycoaxial
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase, brushless DC
- Type
- planetary
- Shaft orientation
- coaxial
- Power
- 500 W...1000 W
- Voltage
- 48 V
- Torque
- 1 - 5 Nm
Description
GENERAL SPECIFICATION
Voltage：48 VDC
Phase：3
Poles：4
Line to line resistance：0.56±10%ohms
Line to line inductance：1.187±20%mH
Rated current：20.5A
Rated output power：691W
No-load speed：4000 rpm
Class insulation：B
Gear Ratio：1:33.92
Output torque：60 N.m
Output speed：88.5 rpm
