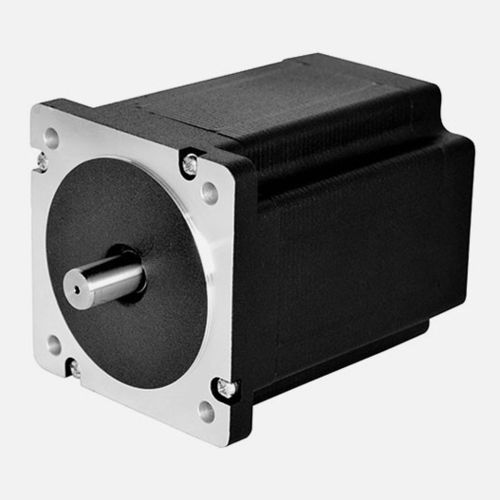

Hybrid stepper motor 90HSD SeriesDC
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- hybrid stepper
- Torque
3.2 Nm, 5.2 Nm, 7 Nm, 9.8 Nm, 13 Nm
(2.3602 ft.lb, 3.8353 ft.lb, 5.1629 ft.lb, 7.2281 ft.lb, 9.5883 ft.lb)
Description
GENERAL SPECIFICATION
Step Angle Accuracy：±5% ( full step, no load )
Resistance Accuracy：±10%
Inductance Accuracy：±20%
Temperature Rise：80℃ max ( rated current, 2 phase on )
Ambient Temperature：-20℃ ~ +50℃
Insulation Resistance：100MΩ min, 500VDC
Dielectric Strength：500VAC for one minute 5mA
Shaft Radial Play：0.02mm max ( 450g load )
Shaft Axial Play：0.08mm max ( 450g load )
Max. Radial Force：220N ( 20mm from the flange )
Max. Axial Force：60N
Rotation：CW
Insulation Class：B (130℃)
