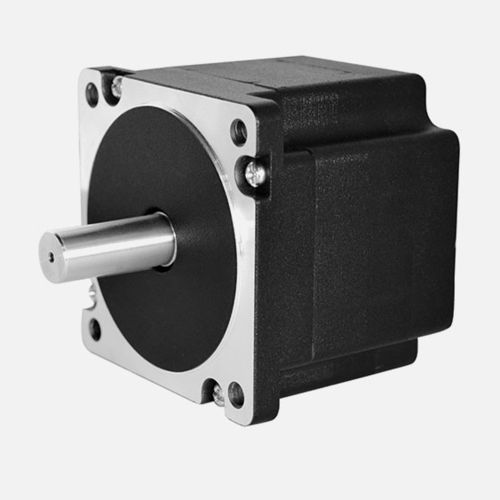

Brushless motor 86BSA Seriesthree-phase8-pole
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- brushless
- Number of poles
- 8-pole
- Power
Max.: 660 W
(0.897 hp)Min.: 37 W
(0.05 hp)- Torque
0.35 Nm, 0.7 Nm, 1.4 Nm, 2.1 Nm
(0.2581 ft.lb, 0.5163 ft.lb, 1.0326 ft.lb, 1.5489 ft.lb)- Rotational speed
1,000 rpm, 3,000 rpm
(6,283.19 rad.min-1, 18,849.56 rad.min-1)
Description
GENERAL SPECIFICATION
Winding type：YWE
Hall effect angle：120 Deg. Electrical angle
Radial play：0.02mm /460g
End play：0.08mm /400g
Max. radial force：220N @ 20mm from the flange
Max. axial force：60N
Insulation class：B
Dielectric strength：500VDC for one minute
Insulation resistance：100MΩ min., 500VDC
