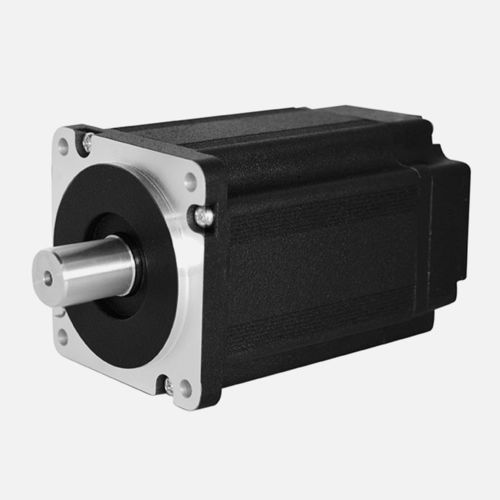

Brushless motor 60BSA Series

three-phase24 V12 V

GENERAL SPECIFICATION Winding type：Delta Hall effect angle：120 Deg. Electrical angle Radial play：0.025mm /460g End play：0.025mm /400g Max. radial force：115N @ 20mm from the flange Max. axial force：45N Insulation class：B Dielectric strength：500VDC for one minute Insulation resistance：100MΩ min., 500VDC The specific advantages and features of this series of products are as follows 1. Built-in brushless driver, DC voltage input, plug can be used directly. 2. Motor speed regulation function, closed loop control, can use analog voltage and PWM speed regulation mode, can output speed feedback, accurate control. 3. Including Thermal overload protection with automatic recovery, precise protection of motor and driver, automatically power off when the temperature is too high, and automatically restart when the temperature drops. 4. The brushless motor used in this series has a lifetime of up to 30,000 hours and a wide range of applications. 5. The ambient temperature ranges from -40 ° C to + 75 ° C 6. Up to IP67 protection (under the condition of protection of the output end face) 7. Power from 50W to 500W can be achieved 8. Rated speed range from 1000-5000rpm can be customized 9. Vibration standard refer to GB2807-81
