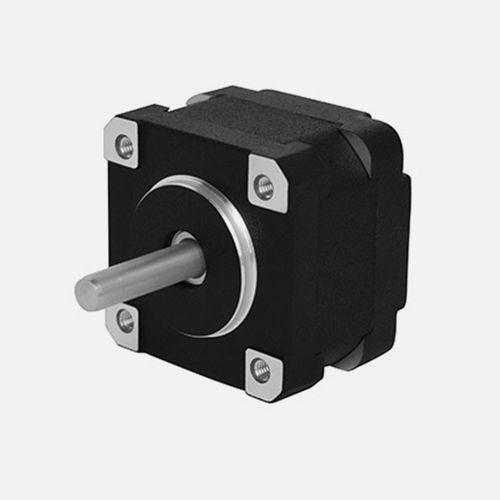

Hybrid stepper motor 35HSD SeriesDC
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- hybrid stepper
- Torque
0.05 Nm, 0.08 Nm, 0.18 Nm, 0.25 Nm
(0.0369 ft.lb, 0.059 ft.lb, 0.1328 ft.lb, 0.1844 ft.lb)
Description
GENERAL SPECIFICATION
Step Angle Accuracy：±5% ( full step, no load )
Resistance Accuracy：±10%
Inductance Accuracy：±20%
Temperature Rise：80℃ max ( rated current, 2 phase on )
Ambient Temperature：-20℃ ~ +50℃
Insulation Resistance：100MΩ min, 500VDC
Dielectric Strength：500VAC for one minute 5mA
Shaft Radial Play：0.02mm max ( 450g load )
Shaft Axial Play：0.08mm max ( 450g load )
Max. Radial Force：28N ( 20mm from the flange )
Max. Axial Force：10N
Rotation：CW
Insulation Class：B (130℃)
