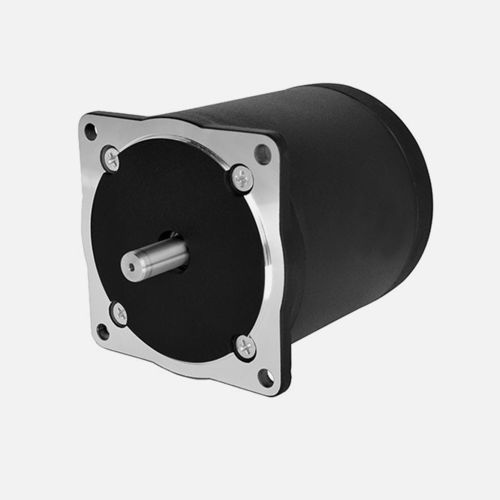

Hybrid stepper motor 86HYD SeriesDC
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- hybrid stepper
- Torque
1.6 Nm, 1.8 Nm, 3.5 Nm, 4.5 Nm, 4.8 Nm
(1.1801 ft.lb, 1.3276 ft.lb, 2.5815 ft.lb, 3.319 ft.lb, 3.5403 ft.lb)
Description
GENERAL SPECIFICATION
Step Angle Accuracy：±5% ( full step, no load )
Resistance Accuracy：±10%
Inductance Accuracy：±20%
Temperature Rise：80℃ max ( rated current, 2 phase on )
Ambient Temperature：-20℃ ~ +50℃
Insulation Resistance：100MΩ min, 500VDC
Dielectric Strength：500VAC for one minute 5mA
Shaft Radial Play：0.02mm max ( 450g load )
Shaft Axial Play：0.08mm max ( 450g load )
Max. Radial Force：220N ( 20mm from the flange )
Max. Axial Force：60N
Rotation：CW
Insulation Class：B (130℃)
