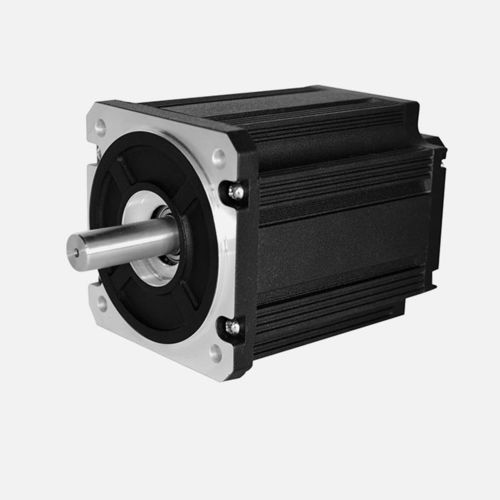

Brushless motor 90BSA Seriesthree-phase8-pole
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- brushless
- Number of poles
- 8-pole
- Power
Min.: 157 W
(0.213 hp)Max.: 785 W
(1.067 hp)- Torque
Min.: 0.5 Nm
(0.3688 ft.lb)Max.: 2.5 Nm
(1.8439 ft.lb)- Rotational speed
1,000 rpm, 3,000 rpm
(6,283.19 rad.min-1, 18,849.56 rad.min-1)
Description
GENERAL SPECIFICATION
Winding type：YWE
Hall effect angle：120 Deg. Electrical angle
Radial play：0.02mm /460g
End play：0.08mm /450g
Max. radial force：220N @ 20mm from the flange
Max. axial force：60N
Insulation class：B
Dielectric strength：500VDC for one minute
Insulation resistance：100MΩ min., 500VDC
