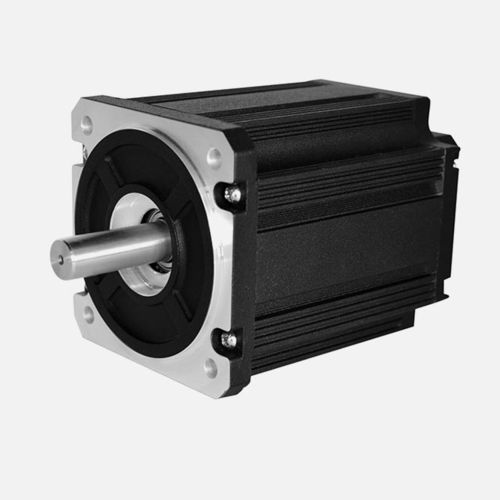

Brushless motor 90BSB Seriesthree-phase24 V48 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- brushless
- Voltage
- 24 V, 48 V
- Number of poles
- 4-pole
- Power
Min.: 209 W
(0.284 hp)Max.: 1,256 W
(1.708 hp)- Torque
Min.: 0.5 Nm
(0.3688 ft.lb)Max.: 6 Nm
(4.4254 ft.lb)- Rotational speed
2,000 rpm, 4,000 rpm, 6,000 rpm
(12,566.37 rad.min-1, 25,132.74 rad.min-1, 37,699.11 rad.min-1)Min.: 2,000 rpm
(12,566.37 rad.min-1)Max.: 6,000 rpm
(37,699.11 rad.min-1)
Description
GENERAL SPECIFICATION
Winding type：YWE
Hall effect angle：120 Deg. Electrical angle
Radial play：0.02mm /460g
End play：0.08mm /450g
Max. radial force：220N @ 20mm from the flange
Max. axial force：60N
Insulation class：B
Dielectric strength：500VDC for one minute
Insulation resistance：100MΩ min., 500VDC
