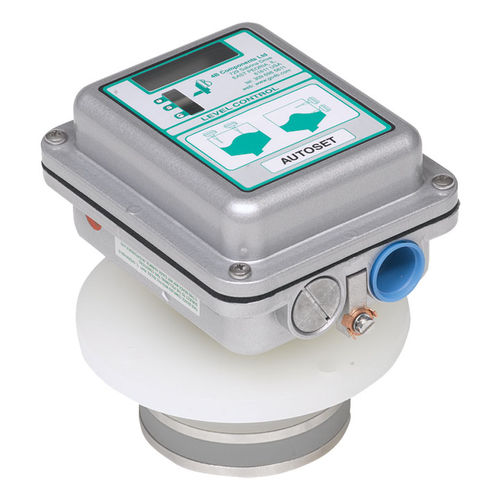

Capacitive level switch ATS8V0AI-FP

admittance RFfor solidsfor hazardous locations

The Auto-Set flush probe represents a low profile RF capacitance plug switch level monitor. The unit is specifically designed for used in tight fitting applications to detect levels of liquids, powders and free flowing granular solids in conveyors, bucket elevators and surge hoppers. The Auto-Set flush probe is built of a simple push-button calibration with microprocessor enable/disable switch to ensure the stored values with total protection. The Auto-Set requires only single time calibration without the need of any re-calibration. The data is stored in non-volatile memory remains unaffected by power loss. The device is equipped with a four digit LED that display set values for uncovered, covered and trip settings enabling simple set-up and adjustment. When the material level in the container reaches the probe, a set of voltage-free changeover relay contacts are actuated. The unit is equipped with unique power shield that automatically compensates for material build-up around the probe and on the sides of the container to prevent any false indication.
