Alignment measurement system stepCHECK
3Dfor the automotive industryinstant

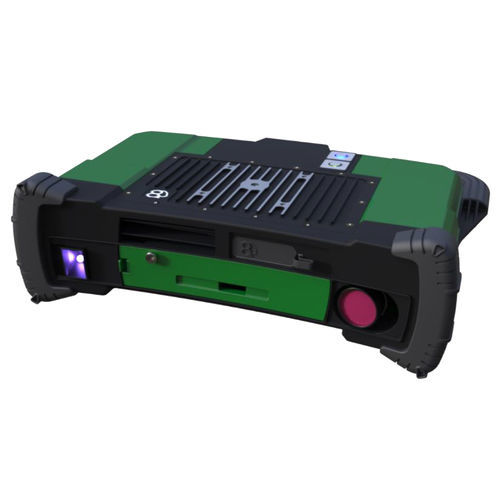

Alignment measurement system - stepCHECK - 8tree’s - 3D / for the automotive industry / instant
Alignment measurement system - stepCHECK - 8tree’s - 3D / for the automotive industry / instant
Alignment measurement system - stepCHECK - 8tree’s - 3D / for the automotive industry / instant - image - 2
Alignment measurement system - stepCHECK - 8tree’s - 3D / for the automotive industry / instant - image - 3
Add to favorites
Compare this product


Characteristics

Measured physical value
alignment
Technology
3D
Applications
for the automotive industry
Other characteristics
instant

Description

stepCHECK delivers accurate 3D measurement and instant analysis of step height, parallelism, and flushness finish between adjacent surfaces. Using the augmented reality reprojection of results, operators can visualize surface alignment non-conformity and identify corrective actions, right on the shop floor. With stepCHECK, inspection of surface alignment GD&T requirements becomes easier (Geometrical Dimensioning & Tolerancing).
