Pancake type motor RMD-L-4005-EU
DCbrushless12 V

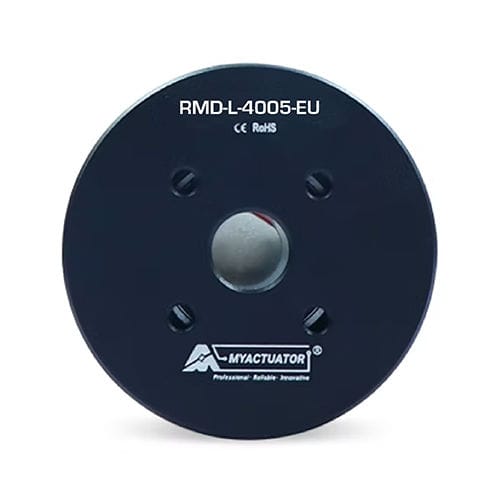

Pancake type motor - RMD-L-4005-EU - A2V Mécatronique - DC / brushless / 12 V
Pancake type motor - RMD-L-4005-EU - A2V Mécatronique - DC / brushless / 12 V
Pancake type motor - RMD-L-4005-EU - A2V Mécatronique - DC / brushless / 12 V - image - 2
Pancake type motor - RMD-L-4005-EU - A2V Mécatronique - DC / brushless / 12 V - image - 3
Add to favorites
Compare this product

Go to the A2V Mécatronique website for more information

Characteristics

AC/DC
DC
Type
brushless
Voltage
24 V, 12 V
Protection class
IP54
Configuration
hollow-shaft, with integrated driver and coder, ultra-compact, flat, cylindrical, pancake type
Number of poles
multipole
Applications
for medical applications, industrial, for robotics, for collaborative robots, packaging machine, for automatic doors, agricultural, for drone, for the textile industry, for power tools, for agribusiness, for wheelchair, for electric vehicles, for rotary tables
Other characteristics
low-voltage, RS-485, with built-in encoder, closed-loop, with integrated inverter, with built-in electronics, CANbus
Power

100 W
(0.136 hp)

Intensity

1.44 A

Max.: 5.8 A

Min.: 0 A

Torque

0.07 Nm
(0.0516 ft.lb)

Max.: 0.25 Nm
(0.1844 ft.lb)

Min.: 0 Nm
(0 ft.lb)

Rotational speed

1,600 rpm
(10,053.1 rad.min-1)

Max.: 2,390 rpm
(15,016.81 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Operating temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

Pancake type brushless motor RMD-L-4005-EU Torque : 0.07Nm Current : 1.44A Communication : CAN or RS485 Motor with integrated variator + encoder Equipped with integrated control electronics and an absolute encoder, it offers excellent energy efficiency and stable torque, perfect for uses such as drones, robots, surveillance systems and other industrial equipment.
