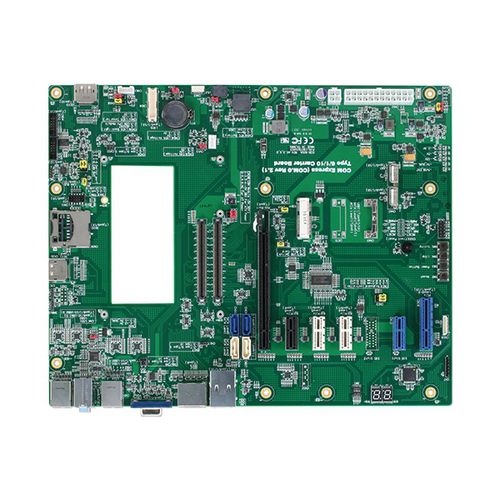

ATX carrier board ECB-920A

COM Express

Overview The ECB-920A is a ATX form factor board supporting Type 1, Type 6 and Type 10 COM Express Modules. AAEON's standard carrier boards can be used in their default configuration or as a starting point for a custom carrier design reducing the cost and time of development. Common uses of a standard carrier are proof-of-concept and software validation which gives any project a jump start to improve time to market.ECB-920A offers one GbE port, four SATA ports, eight USB 2.0 ports and four USB3.0 ports for expedited integration. Applications Evaluation board Features Supports COM Express Module Rev. 2.1 Pin-out Type 1/6/10 Supports Gigabit Ethernet, RJ-45 Up to 24-bit Dual Channel LVDS Connector, DP, VGA High Definition Audio SATA Port x 4 USB 2.0 x 8, USB 3.0 x 4 ATX Power Input LPC Connector x 1, ATX Form Factor
