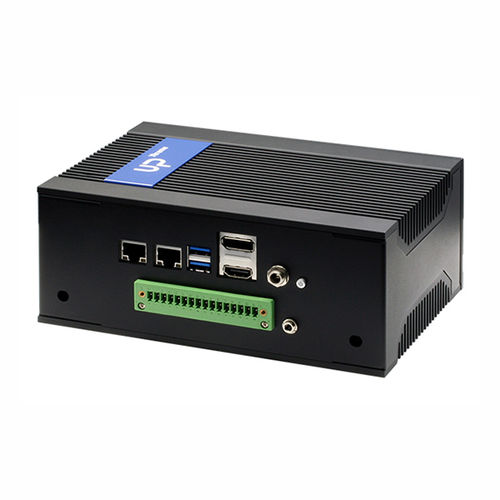

Embedded computer UPX-Edge

Intel® Celeron®8th generation Intel® Core™ i58th generation Intel® Core™ i7

Overview The UP Xtreme Edge Computing System, or UPX-Edge for short, is a complete embedded system that’s ready to go out of the box. Built on the UP Xtreme board, UPX-Edge is powered by 8th Generation Intel® Core™ and Celeron® processors (formerly Whiskey Lake) with up to 16GB of onboard RAM and 64GB of eMMC memory to power through any application. With the latest Intel® graphics solution, the UPX-Edge is capable of 4K video output, and features a built-in audio jack as standard. The UPX-Edge is designed with key industrial I/O features for flexibility and easy integration with existing infrastructure. I/O ports include two external GPIO connections, two COM ports, and four USB 3.2 Gen 1 ports. The UPX-Edge can also hold up to extreme conditions, with an operating temperature range of -20°C to 70°C (tested with AI Core XM 2280, 2x Intel® Movidius™ Myriad™ X). UPX-Edge makes deploying a powerful edge system easy, whether it’s as a factory IoT gateway, AI powered machine controller, or in a smart retail application. Features -Intel® WHL-U Core™ i7/i5/i3/Celeron Processor SoC -Onboard DDR4 memory, Max 16GB -eMMC 64GB -HDMI 2.0 x 1 (Support 4K at 60 Hz) -COM ports (RS-232/422/485) x 2 -16pin GPIO connectors (1x GPIO for SMT32, 1x GPIO for 40pin HAT) -Audio Jack x 1 (line out + Mic) -12-60V DC-in -Fanless Chassis design
