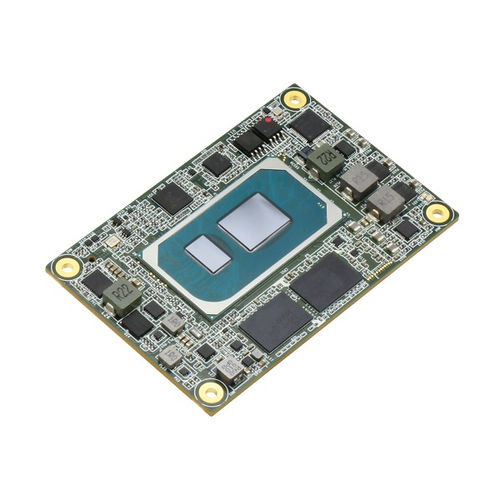

COM Express computer-on-module NanoCOM-TGU

11th Generation Intel® Core™USB 2.0gigabit Ethernet

Overview The NANOCOM-TGU from AAEON brings high speed processing, storage and networking to the compact COM Type 10 mini form factor. Powered by the 11th Generation Intel® Core™ U processors (formerly Tiger Lake), the NANOCOM-TGU delivers unrestricted performance thanks to 16GB onboard LPDDR4x memory and NVMe storage up to 128 GB. It also features the Intel® i225LM chipset, powering 2.5 Gbps Ethernet, as well as support for two SATA III drives, two USB3.2 ports and eight USB2.0 ports. It also features DDI and eDP video out, delivering brilliant graphic performance thanks to Intel® Iris® Xe (on select SKUs). The NANOCOM-TGU is also built to deliver consistent performance in tough environments, and with industrial Intel Core processors, can operate in temperatures from -40°C to 85°C. Features - 11th Generation Intel® Core™ Processor Family (formerly Tiger Lake UP3) - Onboard LPDDR4x Memory up to 16 GB - 2.5 Gigabit Ethernet x 1 - eDP x 1 , DDI x 1 - High Definition Audio Interface - SATA3.0 x 2 , onboard PCIe SSD x 1 - USB 2.0 x 8, USB 3.2 Gen2 x 2 - PCI-Express [x1] x 4 - COM Express Type 10, Mini Size, 84 mm x 55 mm
