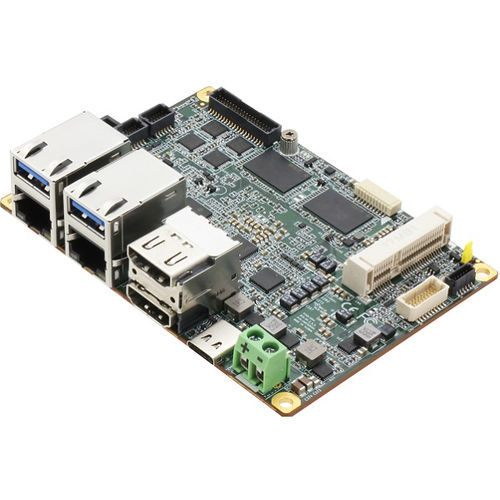

Pico-ITX / 2.5" motherboard PICO-V2K4

AMD Ryzen™AMDLPDDR4

Pico-ITX Board with AMD RYZEN™ V2000 embedded Processor Family Features - AMD RYZEN™ V2000 embedded Processor Family (V2718/V2516) - LPDDR4x on board memory, up to 32 GB - Intel® i226, 10/100/2500Base x 1 - Intel® i210, 10/100/1000Base x 1 - HDMI x 2 (4Kx2K, 2.0b x 1, 1.4 x 1) - Type C to DP x 1, LVDS/eDP x 1 - M.2 2280 M key (PCIE x4 GEN3/SATA) x 1 - Full size mPCIe/mSATA x 1 - USB 3.2 Gen 2 x 2, USB 3.2 Gen 2 Type C x 1 , USB 2.0 x 4 - RS-232/422/485 x 4 The smallest form factor powered by the AMD RYZEN™ V2000 embedded Processor family available, the PICO-V2K4 has a foundation of high-performance AMD Radeon™ graphics and 7nm processing technology. This CPU is integrated into a compact (3.94" x 2.84") board containing incredibly rich I/O features and expansion options, while also maintaining the power efficiency that AAEON’s PICO-ITX board range is renowned for. The PICO-V2K4’s synthesis of unprecedented high-speed computing power, groundbreaking graphic capability and targeted I/O supply the optical supremacy needed for edge applications such as medical imaging, industrial automation, and embedded gaming. As part of its rich expansion options, the PICO-V2K4’s M.2 2280 M-key allows applications to operate faster and enable greater system memory. With up to 32GB of LPDDR4x on board memory, the PICO-V2K4 can hit clock speeds of up to 3733 MHz while maintaining a low operating voltage.
