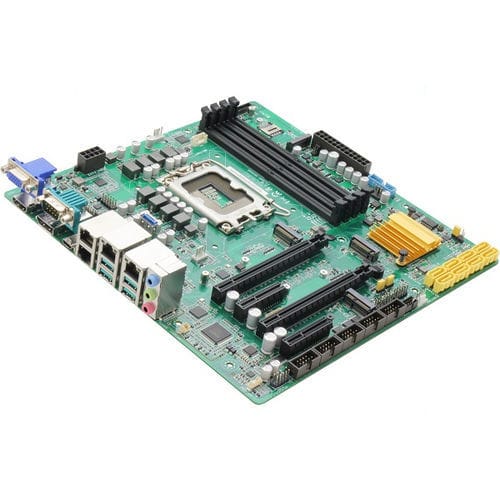

Industrial motherboard MAX-Q670Amicro-ATXIntel® Core™ i series12th Generation Intel® Core™
Add to favorites
Compare this product
Characteristics
- Format
- micro-ATX
- Processor
- Intel® Core™ i series, 12th Generation Intel® Core™, 13th Generation Intel® Core™
- Chipset
- Intel® Q670E
- Memory
- DDR5 SDRAM, RAM, DDR4 DRAM, DDR5 SO-DIMM
- Extension slot
- SATA3, PCI Express
- Socket
- Intel 1700
- Applications
- industrial, embedded, POS, workstation
- Operating system
- Windows 10, Windows 11
- Memory frequency
- DDR5 4000 MHz
- Connectivity
- USB, gigabit Ethernet, USB 2.0, USB 3.0, VGA, HDMI, USB 3.2, DisplayPort, Ethernet, RS-232
Description
MAX with 12th/13th Generation Intel® Core™ LGA1700 Socket Processors, TDP Max. 125W
Features
-12th/13th Gen Intel® Core™ LGA1700 Socket Processors
-DDR5 4000MHz U-DIMM x 4, up to 128GB
-Four Independent Displays: HDMI 2.0 x 1, DP x 1, VGA x 1, LVDS/eDP x 1
-GbE LAN x2 (Optional: Additional 2.5GbE LAN x 2, Intel® I225-LM)
-M.2 2242/2280 M-Key x 2, M.2 3042/3052/2242 B-Key + Micro SIM Slot, M.2 2230 E-Key x 1
-USB 3.2 Gen 2 x 4, USB 3.2 Gen 1 x 3, USB 2.0 x 2 (Optional: USB Type-C x 1)
-Switchable USB Power feature for remote USB device reset
-Bootable feature in rear USB Port for enhanced security
-Onboard TPM 2.0
Catalogs
MAX-Q670A
2 Pages
