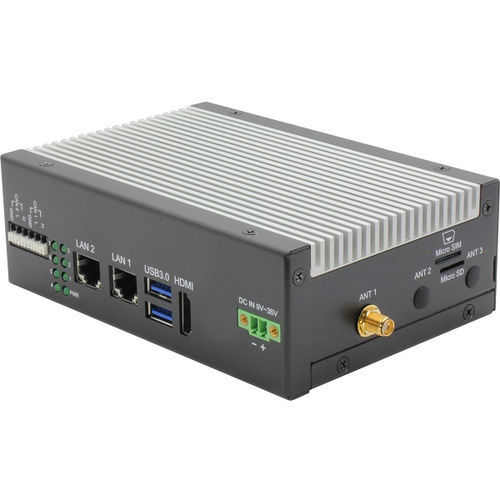

IoT gateway SRG-IMX8P3GWiFiRS-232
Add to favorites
Compare this product
Characteristics
- Type
- IoT
- Network
- 4G, WiFi, 3G, USB, RS-485, RS-232, RS-422, MQTT, Bluetooth, Modbus
- Other characteristics
- DIN rail, wall-mounted, Linux
Description
Overview
Standard IoT Gateway with ARM i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor, and support PSA Certified Level 1
Features
- NXP i.MX8M Plus Quad Cortex-A53 1.6 GHz RISC Processor
- Onboard LPDDR4 2GB / eMMC 16GB (Optional 4GB RAM/ eMMC 32GB)
- HDMI 2.0a
- GbE x 2
- USB 3.0 x 2, Full size mPCIe x 2, CAN-FD x 2 CH, Micro SD Card Slot x 1, RTC, TPM 2.0
- Wide DC Input 9~36V
- Wide Temperature -20 °C ~ 70 °C
- UL61010 certificated; PLC and heavy industry IEC61000-6-2, IEC61000-6-4, IEC61131-2 qualified
- Pre-Install Linux Debian 11
- Supports Modbus/ MQTT Library/ OPCUA/ Security boot/ GUI/ Machine learning eIQ (by request)
Catalogs
SRG-IMX8P
2 Pages
