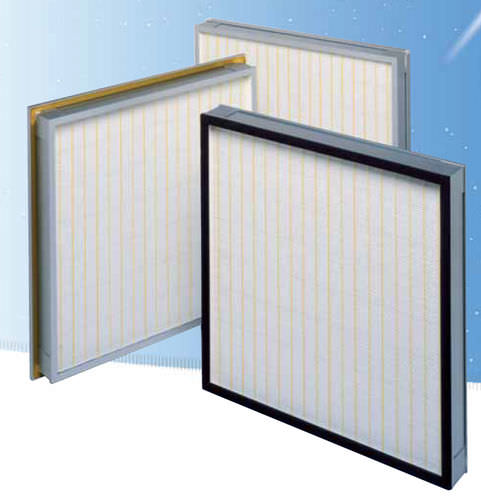

Air filter MEGAcel®

panelpleatedhigh-efficiency

Product Overview Lowest initial resistance available Negligible off-gassing properties (no boron) AAF’s high tensile strength ePTFE media is up to 8 times stronger than microglass Highly resistant to corrosive environments (acids, alkalis, and organic substances) Gasket seal, gel seal and knife-edge designs available Lightweight anodized aluminum frame 99.99995% on MPPS Typical Applications Microelectronics Energy Conservation The AAF ePTFE pleated pack resistance is a minimum of 30% lower than conventional micro fiberglass media, a factor contributing to a great reduction in fan energy consumption. AAF’s pleating method, which uses intermittent polyamide separators, allows more open media area, optimizing pleat pack resistance. Perfect Filter Media Compared with micro fiberglass media, AAF’s ePTFE media provides superior benefits, including inert chemical properties, more uniform fiber distribution, and smaller fiber diameters and pore size. This reduces resistance, creating higher filtration performance to achieve substantial energy savings.
