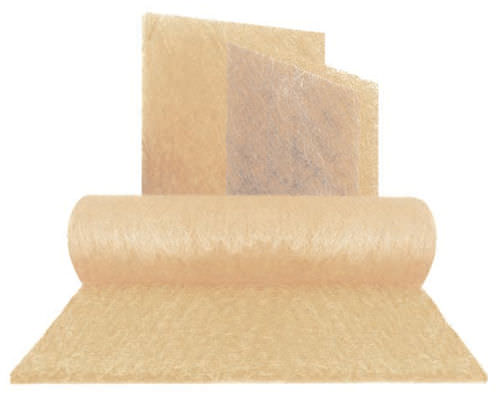

Fiberglass filter medium M-81

air

Product Overview Heavy duty coalescing pad Removes moisture from the environment Water resistant construction Maintains its thickness and resilience when saturated Easy to replace Typical Applications Coastal Fog Heavy Precipitation Moisture Removal AmerKool M81 is a heavy duty coalescing pad that can be used in several different configurations to eliminate mist and moisture from the environment. Water Resistant Construction The M81 coalescing media is made from a 3 inch (75 mm) thick blanket of continuous filament glass fibres. A specially formulated water resistant binder is applied during the glass spinning process that allows the media to maintain its thickness and resiliency when saturated with water. Depth-loading Media The M81 pads consist of an open weave fibre pattern on the air entering side and a tighter weave on the air leaving side. This unique construction permits use of the full depth of the pad, thus increasing the amount of water each pad can hold. Suitable for Moderate and High Moisture Levels A weatherhood with a M81 pad is effective under moderate moisture conditions or where heavy moisture conditions exist occasionally. A weather louver with a M81 pad is well suited for heavy moisture conditions. Drain shelves and troughs or trapped chains should always be provided for when heavy moisture is anticipated. AAF demister sections are available with integral drainage systems designed to meet each application’s specific needs.
