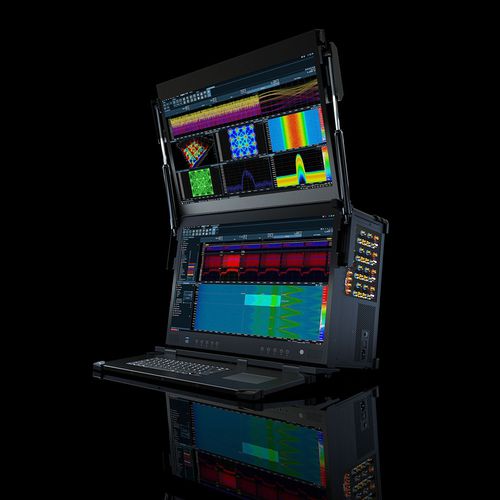

Signal analyzer SPECTRAN® V6 CC 8000CA-6

monitoringspectrumportable

Probably the fastest real-time spectrum analysis solution in the world, the SPECTRAN® V6 Command Center delivers the RF performance you need, right where you need it. With up to 980 MHz RTBW or more than 4 THz/s sweep (6 GHz in less than 1 millisecond), this customizable high-end spectrum analyzer offers unmatched performance in a dual-screen mobile system. The SPECTRAN® V6 Command Center 8000CA-6 samples the configured frequency range of up to 6 GHz (optionally 8 GHz) at over five million samples per second. It also includes four independent analyzers (8x 2GSPS 16-bit I/Q data) and four vector signal generators (4x 2GSPS 14-bit I/Q). Hereby 4x 160 MHz real-time bandwidth are already available ex works, which can be optionally extended and thus adapted to your needs. A built-in RF switch can be used to distribute the input signal to the integrated receivers. In addition, it can be further adapted, for example, via built-in RF-over-Fiber back converter. The two 4K widescreen monitors (combined resolution of 3840 x 4320 pixels) are predestined for displaying the complete frequency range or monitoring multiple frequency bands simultaneously in real time. This allows a detailed analysis of even the very shortest signals, which are reliably captured thanks to a POI of less than 10ns (I/Q-based) and 97ns (FFT-based). Thus, the CC EE rightly bears the title "Fastest Counter Surveillance Receiver in the World".
