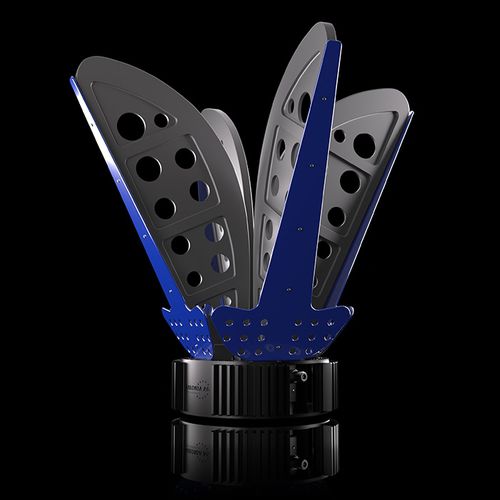

Broadband antenna PowerLOG® PRO 30300 EMI

horndipolequad-ridged

The double polarized quad-ridged horn antennas of the PowerLOG® PRO series are characterized by enormous broadband performance and very high transmission power. The gain increases with higher frequency up to max. approx. 14 dBi and generates a constant field strength, quasi-independent of the frequency. This predestines the PowerLOG® PRO 30300 especially for EMI compliance tests, since the amplifier does not have to be readjusted depending on the frequency. This saves a considerable amount of calibration and measurement effort. Another special feature of the PowerLOG® PRO 30300 is its two inputs. This allows a horizontally or a vertically polarized measurement to be made without the need for an error-prone reconfiguration of the antenna. The PowerLOG 30300 is suitable for both sending and receiving purposes. Due to the very high maximum transmit power of up to 500 W, the PowerLOG is particularly suitable for EMC or interference emission measurements. The antenna is supplied incl. comprehensive, specific calibration data. Highlights: • Supports very high power levels up to 500W (CW) • Constant field strength due to linear increasing gain • Horizontal and vertical measurement without rebuild • Delivery includes specific calibration data • Perfectly suited for EMC measurements with spectrum analyzers • Dimensions: 510 x 507 x 507 mm • Weight: 8.8 kg
