Magnetic field probe PBS 2

powerfieldlaboratory

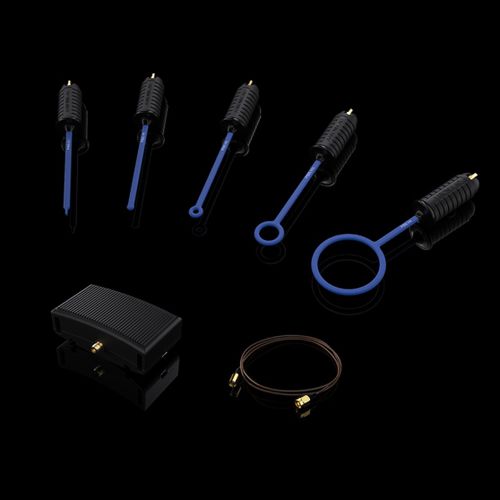

Our EMC near field probe set for every Spectrum Analyzer and Oscilloscope allows for straightforward pinpointing and measurement of interference sources from DC to 9 GHz in electronic component groups as well as execution and monitoring of generic EMC measurement. Our sniffer set includes a total of 5 probes: 4 probes for magnetic field measurement and one for measurement of electric fields. All probes are covered with an insulating layer, thus allowing safe measurement of oscillators or mains lines. The PBS2 probe-set additionally contains a high-performance pre-amplifier, allowing measurement of significantly weaker interference sources, boosting the sensitivity of our instruments by up to 40dB. Perfect for locating interference sources which might have been found e.g. in an EN55011, EN55022 or EN50371 (Class A or Class B) survey. After implementing appropriate changes in the circuit, their efficiency can easily and reliably be verified. That way, expensive and time-consuming re-assessments in an EMC laboratory can be skipped. Ships with 5 probes (SMB-Connector), pre-amplifier with battery and power supply (only PBS2), transport case, miniature tripod and 1m SMA-to-SMB cable
