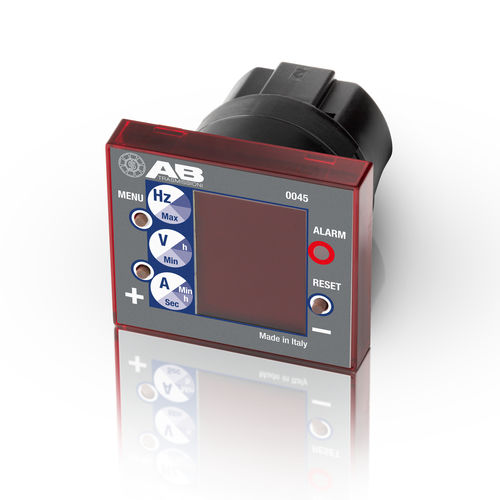

Current indicator E57 series

voltagestatusfrequency

The indicator is a new line of instruments designed especially for application on generators, electrical machines and industrial panels as an alternative to traditional index instruments, capable of offering numerous technical and economic advantages. A solid state electronics of the highest quality guarantees maximum strength against shocks and vibrations while a microprocessor digital sampling technology ensures maximum stability and precision. The indicator is an authentic 6-in-one multimeter for measuring Voltage, Current, Frequency, Active Power, Total Hour Meter h, Partial Hour Meter h-min with reset, alarm status settable in Hz, V, A up to 250A. All measurements are displayed in succession starting from Hz-frequency - V-voltage - A-current, by pressing the key + PA / PAT-active power - Thr-total hour meter h - rhr-partial hour meter h / min - Max and Min and ,delay time, a red alarm led completes the front panel. A relay alarm output is also available as an option. They are intended for applications where the need to report dangerous, operational, anomaly, alarm situations, etc. is required. Small in size, they are suitable for installations on fixed and small-sized mobile switchboards in the civil, tertiary and industrial sectors.
