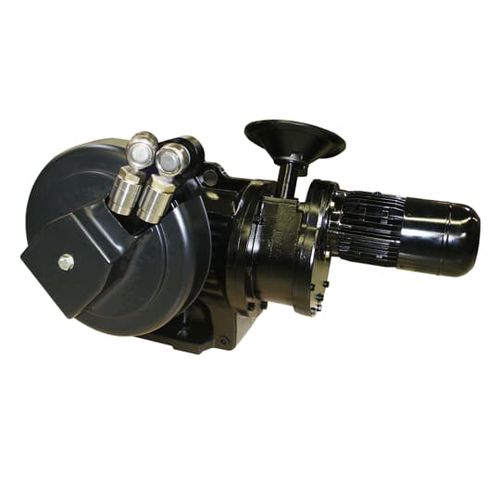

Rotary actuator RHD8000 series

electricexplosion-proofcompact

Compact actuator for the operation of final control elements with rotary movement. For continuous positioning, rated torque (6000 lbf-ft). The actuator thrust rod transfers the force directly to the final control element. Overview General specifications: Electrical actuator for continuous positioning or step control Stallproof without the need of position or torque dependent switch off Explosion-proof design Three-phase asynchronous motor, hermetically sealed Connection areas with increased safety Sturdy gear unit with highly efficient design Adjustable mechanical limit stops for defined operating range Hand wheel for emergency operation Integrated sensors for position and temperature Signal and power input only via separate, microprocessor-controlled electronic unit ABB’s freedom of choice offers the right driver for the major fieldbus protocols suitable for ABB devices. The version matrix document shows for each protocol the software revision that’s compatible to the hardware and firmware revision of the device. Read first – Software/hardware revisions: Version matrix Software and documentation: HART – Software: DTM400 Bundle, EDD – Driver description: Supplementary information PROFIBUS – Software: DTM400, GSD – Driver description: Supplementary information Stand-alone tool: ABB offers software tools that use the listed drivers in the table above for your device configuration and monitoring requirements.
