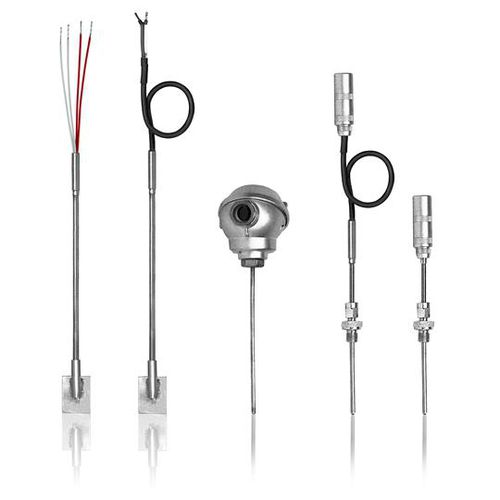

Screw-in thermometer SensyTemp TSC400 series

RTDwithout displayexplosion-proof

Screw-in thermometers SensyTemp TSC400 based on MI-cable for fast and accurate temperature measurement. Rough environmental conditions, hazardous areas, flexible assembly, fast response times, accuracy, skills of SensyTemp TSC400 screw-in thermometers Fastest possible measuring results through direct contact of the sheathed cable with the medium Widest application ranges through optimum sheath materials Subsequent installation possible by surface mounting Optimal usage due to a combination of mechanical an electrical interfaces TSC420 screw-in thermometer with direct electrical connection TSC430 screw-in thermometer with connection cable Data Heat and corrosion resistant sheath material of MI-cable for use in the temperature range of -196 up to 1100°C with RTD and TC sensors Process connections for Plug-In, screw-In or Surface measurement Electrical connection is possible with head type F, standard- or Lemo-plugs or different cables Approvals for explosion protection – ATEX Ex ia – ATEX Ex ib – ATEX Ex n – IECEx ia
