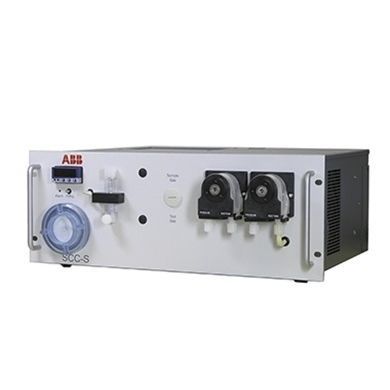

Gas feeding unit SCC-S

with diaphragm pump

The SCC-S Sample Gas Feed Unit is used for sample gas feeding and conditioning and can be perfectly combined with EasyLine series analyzers for compact system solutions. The unit is configurable with a peristaltic pump and a Peltier cooler available in different version as a complete pre-fabricated unit. All-in-one sample gas conditioning in a compact housing with process-proven modules Diaphragm pump for feed-in of the gas Membrane filter/condensate monitor Flow monitor with needle valve Ball valve/solenoid valves for feed-in of the test gas Peltier cooler with condensate pump Ideal for use in simple processes (non-corrosive sample gas) Simple installation and connection Attractively priced system solution in combination with gas analyzers of the EasyLine series Data Housing designed for 19 inch rack mounting and wall mounting (4 height units) Sample gas inlet dew point Version with Peltier cooler: Max. +50 °C (at max. +25 °C ambient temperature) Version without Peltier cooler: The dew point of the sample gas must be at least 5 °C lower than the lowest ambient temperature in the whole sample gas path. Degree of protection IP20 - EN 60529 Internal power supply/power stage (optional) Solenoid valves for internal test gas infeed (optional) Condensate discharge for external cooler (optional)
