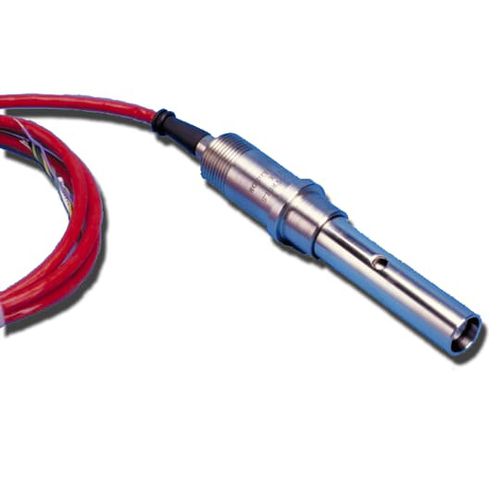

Conductivity electrochemical electrode TB264

stainless steel

The TB264 conductivity cell can be installed either in-line using a 25 mm fitting or used for flow cell applications. In-line applications use either an existing 25 mm port or a bushing and holder nut must be purchased. Flow cell installations enable users to calibrate and isolate the sensor for maintenance very easily. Data Easy installation into either a flow cell or any available 25 mm port Measurement ranges from 0 to 1.999 µS/cm and 0 to 19.99 mS/cm Corrosion resistant 316 stainless steel measurement electrodes Pt100 or Pt1000 integral temperature compensation elements Maximum temperature 200 °C (392 °F) Maximum pressure 1379 kPa (13.79 bar / 200 psi)
