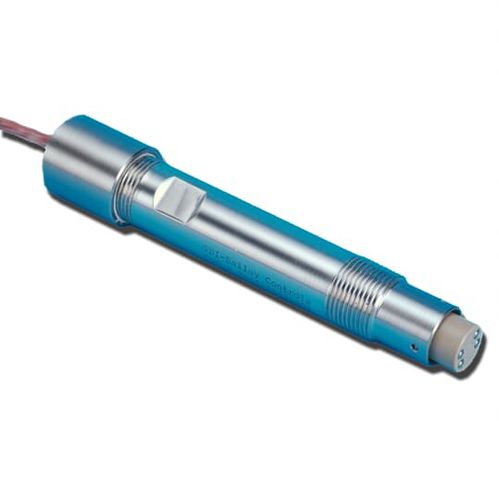

Conductivity electrochemical electrode TB461

stainless steelprocesstip

Ruggedly constructed of 316 stainless steel, the TB461 conductivity cell withstands the most demanding processes and measurement requirements. The TB461 insertion / submersion sensors are easily installed into process lines and vessels using the 3/4 in. NPT insertion threads or submersed directly into fluids by the back-threads. TB461 hot-tap sensors are directly inserted and removed from lines and vessels without disturbing the process via either a 11/2 in. normal or 11/4 in. full port ball valve. This series is the most versatile offered by ABB. Full spectrum conductivity measurement is achieved by the wide rangeability of the sensor and the unique, interchangeable tip design Data Insertion, submersible and retractable models available Interchangeable and replaceable electrode tips Extent of fouling notification and fouled sensor relay Integral automatic temperature compensation Suitable for all measurements Inline / submersible max. pressure / temperature: 1,550 kPa (15.5 bar / 225 psi) at 200 °C (392 °F) Hot-tap max. pressure / temperature: 689 kPa (6.89 bar / 100 psi) at 200 °C (392 °F)
