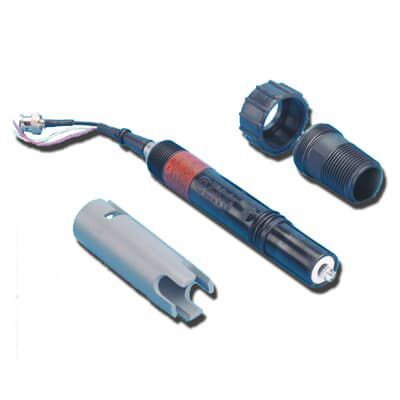

Redox pH sensor TBX551

for water

The TB(X)5 series pH / redox (insertion, submersion, flow-through and hot-tap sensors) are easily applied to most industrial measurement needs. They are renowned for their ability to outperform conventional sensors in the industries' toughest process applications. Solid-state Next Step™ reference technology is the foundation for all TB(X)5 Series electrodes. The totally solid inner reference chamber is charged with potassium chloride (KCl). This non-liquid reference all but eliminates poisoning, plugging and pumping problems that plague conventional liquid, slurry and gel designs. Data Next Step™ Solid State reference Advantage™ Series with solution ground rod Comprehensive selection of measuring electrodes Combination style construction Insertion, submersion, flow-through and hot-tap Integral potted cable Comprehensive selection of wetted materials Operating temperatures up to 140 °C (284 °F) Operating pressures up to 17 bar (250 psi) and higher
