Pressure multi-parameter transmitter 266JST

temperaturedifferential pressureprocess

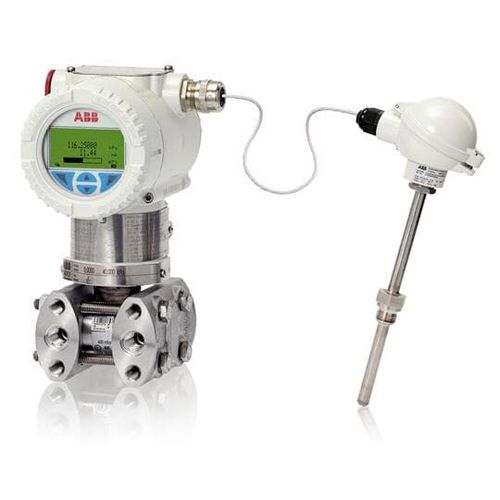

The multivariable transmitter 266JST is able, thanks to multisensor technology, to measure differential pressure, absolute pressure and temperature of liquid, vapour and gas. Temperature is measured via an external RTD. In addition to high precision, the multivariable 266 also offers the advantage that only a single device needs to be used for the measuring point instead of several transmitters which reduces purchase and installation cost and increases reliability due to fewer devices and less wiring. Data Base accuracy: ± 0.04 % Reduced process penetrations save money and reduce the risk of leakage High static working pressure option (41 MPa, 6000 psi) for power plants, pipelines or oil and gas production True draft range (down to 0.05 kPa, 0.2 inH2O) transmitter Local operation with LCD with TTG (Through The Glass) technology without the need of opening the housing Detection of plugged impulse lines Exchangeable electronics with automatic configuration capability
