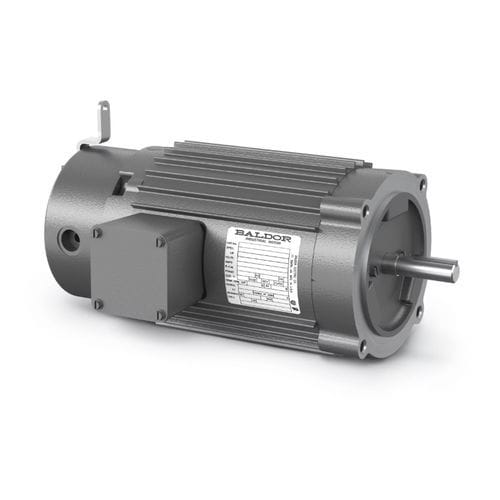

AC brake motor VRBM seriesasynchronous230 V460 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- asynchronous
- Voltage
- 230 V, 460 V
- Protection class
- IP54
- Configuration
- aluminum frame
- Number of poles
- 4-pole
- Applications
- for conveyors
- Other characteristics
- NEMA
- Power
Min.: 0.507 ch
(0.507 hp)Max.: 3.042 ch
(3.042 hp)- Rotational speed
1,800 rpm
(11,309.73 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
High cycle brake motors
Baldor-Reliance high cycle brake motors feature a DC brake with integral rectifier which provides faster action than traditional spring-set brakes. It is made of cast aluminum footless frame for increased thermal dissipation, ideal for frequent start-stop applications. Available in either totally enclosed fan cooled or totally enclosed non-vent construction.
Features
• 1/2 - 3 Hp
• NEMA frame 56C – 145TC
• C-Face footless
• 208-230/460 and 230/460 volts
• IP54
• Cast aluminum frame design engineered for thermal dissipation
• Low inertia, high efficient motor
• Fast action DC brake with integral rectifier
Common applications
• Frequent start and stop applications
• Conveyors
• Hoists
• Door operators
Common industries
• Unit Handling
• Baggage handling
• Packaging equipment
