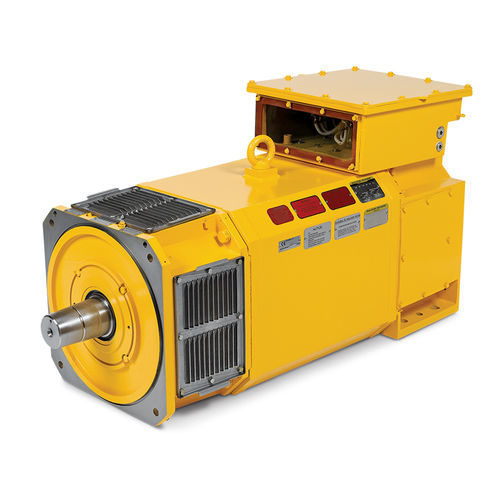

Drill motor 400 Hp

ACasynchronous575 V

Top Drive drilling motor Baldor-Reliance® Top Drive drilling motors are durable, safe and meet the performance demands of onshore drilling rigs. The compact, power dense design offers more power in a smaller package with certifications to ensure equipment and personnel safety. Features • 400HP, 1150/2400 rpm, 575V rated (random wound or form wound) • Available with ambient temperature ratings up to 55C • CSA, ATEX, IEC-Ex, and ABS Certifications available • Rugged laminated steel frame with IP44 rated DPSV enclosure • Ductile iron bearing brackets with industry standard DE and ODE flanges • Stainless steel air outlet covers with stainless steel mesh screens • Critical fasteners secured with safety wire or cotter keys • Rated for shock loads up to 6G • Class II double ended shaft with industry standard tapers fitted for hydraulic removal of the coupling • Cast aluminum rotor locked to the shaft to resist high shock loads • DE roller bearings and ODE back to back angular contact bearings • Double inboard and outboard seal system on the DE and ODE with Inpro Seal on the ODE outboard side
