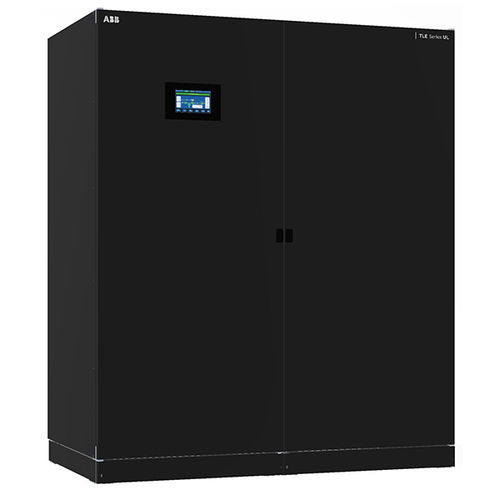

Double-conversion UPS TLE

three-phaseVRLANi-Cd

The TLE Series UPS brings the latest power conversion technology to the marketplace, using a three-level inverter design and a multi-mode architecture that makes real time decisions between premium protection mode and premium efficiency mode. The TLE Series UPS was developed using ABB's Design for Six Sigma (DFSS) methodology to ensure that the product meets customer requirements for reliability and quality. ABB at Its Best Highly reliable and efficient tri-level conversion Automatic or manual multi-mode generation "Best of Both Worlds" Operating Efficiency Up to 99% premium efficiency mode (filtered eBoost) Up to 97% premium protection mode (double conversion) Electrical Environment Optimization Unity (1.0) Output Power Factor High (0.99) Input Power Factor Less than 5% Input Current Harmonic Distortion Physical Environment Optimization Small footprint Front access only design for maintenance "Cable saver" design to allow +/- 25% differential of cable lengths between UPS modules and the output parallel Energy Efficiency is Our Focus ABB's TLE Series UPS is one of the most energy-efficient double-conversion UPS in the industry and provides world-class energy efficiency across the operating load range. The TLE Series delivers efficiency up to 96.5% in double conversion mode and 99% in eBoost operating mode. This system efficiency substantially reduces operating and cooling costs thus providing a reduced cost of ownership and improved power usage effectiveness (PUE) compared to conventional UPS. ABB's UPS performance is optimized at 50-75% load operation, as this is the most common operating range.
