On-line UPS DPA UPScale ST series

parallelall-in-onethree-phase

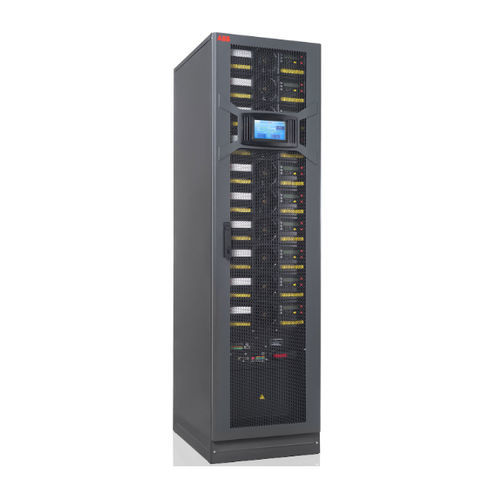

ABB’s DPA UPScale ST S2 is a modular UPS designed for low-medium power applications. The UPS offers all-in-one power protection solution that includes frame, UPS, battery and communications. The system delivers power protection from 10 kW to 200 kW in a single frame and growing mid-size infrastructures, it can be paralleled horizontally to increase the capacity up to 400kW.This fully scalable and easily maintained UPS gives you unparalleled uptime and energy efficiency. Decentralized Parallel Architecture 99.9999% (6 nines) availability Redundant capacity (N+1) per frame Full vertical and horizontal scalability up to 400kW Best-in class efficiency performance 96% Small foot print with maximum power density 472kW/m2 Fast maintenance and seviciability With DPA technology each UPS module has its own independent logic control control panel rectifier inverter battery static bypass Designed for low- medium power applications, the DPA UPScale ST S2 delivers true modular power protection from 10 to 200 kW (one to ten modules) in a single industry standard frame. Its flexible design provides a “pay as you grow” model, makes it easy to upsize the installed UPS as power requirements grow and to configure systems in parallel to reach a total power capacity of 400 kW. The DPA UPScale ST enables cost reduction through best-in-class efficiency performance, fast and efficient implementation and extremely low overall operating costs.
