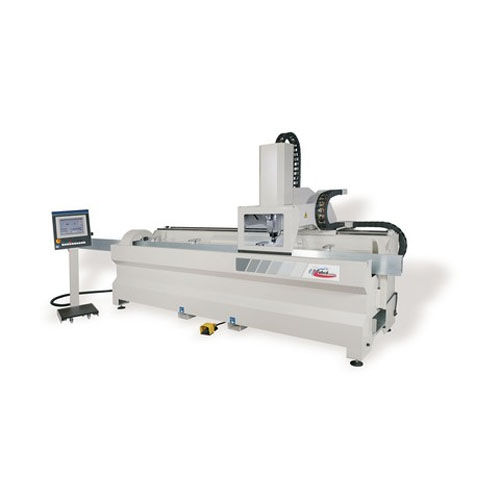

3-axis machining center CUMBIA

verticalfor aluminum

Floor-type vertical spindle machining center controlled by CNC. Pneumatic tilting working table: -90°/0°/+90°, intermediate angles obtained by mechanical stops. The machine is fitted with an electric-spindle 4Kw, 24000rpm, automatic quick change of the tool with 6 tools positions. Interpolation X / Y / Z axes managed by numerical control. Monitor 11,5” TFT colour display (Touch screen with simplify graphic running on Windows). Possibility to work pieces longer than the machine. Brushless Yaskawa motors for X / Y / Z axis positioning. Complete with 4 pneumatic double action clamps with manual movement. Micro-drop lubrication. Axis movement on linear guides. Left stop. Light curtain system.
