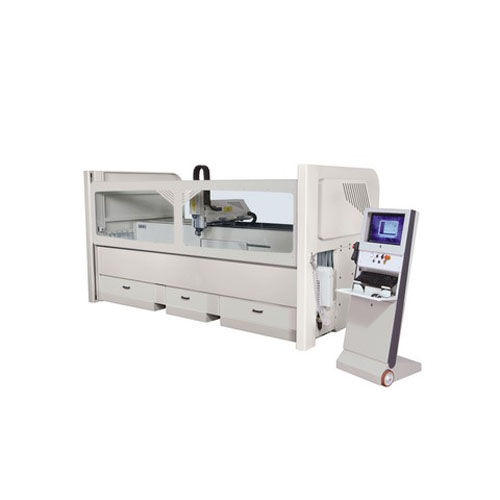

3-axis machining center RUMBA series
verticalfor aluminumfor steel

3-axis machining center - RUMBA series - ABCD MACHINERY S.r.l. - vertical / for aluminum / for steel
3-axis machining center - RUMBA series - ABCD MACHINERY S.r.l. - vertical / for aluminum / for steel
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Machined material
for aluminum, for steel
X travel

3,000 mm
(118.11 in)

Y travel

400 mm
(15.75 in)

Z travel

300 mm
(11.81 in)

Rotational speed

Max.: 18,000 rpm
(113,097 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Power

4 kW
(5.44 hp)

Description

USEFUL STROKE X= 3000mm Y= 400mm Floor-type vertical spindle machining center controlled by CNC, able to work on extruded aluminium, light alloys, PVC and iron working on 3 sides. Tilting working table managed by CNC: -90/0/+90with intermediate angles. The machine is fitted with an electric-spindle 4Kw, 18000rpm managed by inverter and quick change of the tool with spindle ISO30. Interpolation X, Y, Z and W axes managed by numerical control. Brushless motors for X, Y, Z and W positioning. Performances and tilting of the working table in complete safety by the enclosed protection. Complete with 4 pneumatic double action clamps, tool diameter correction by software. Axis mouvements on linear guides. Left profile stop. Milling dimensions: X=3000mm, Y=400mm, Z=300mm.
