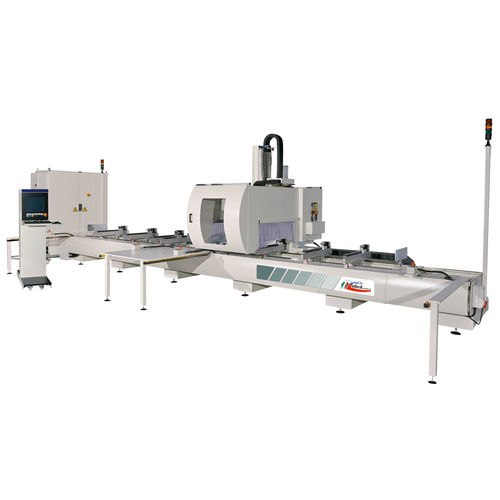

5-axis machining center TANGO 3

verticaltraveling-columnfor aluminum

USEFUL STROKE X= 6900mm Y= 650mm Floor-type vertical spindle machining center with 5 axis controlled by CNC able to work on extruded aluminium, light alloys, PVC and iron. The machine is fitted with an electric-spindle (12,5kw S6, 24.000 rpm) with shank according with HSK63 rule, preset for an automatic tool change. The tool magazine, fixed on the mobile upright, can store till 8 tools to drill, to mill, to thread and to endmilling (milling cutter max Ø150mm). Equipped with 6x standard vices. Kit lubrification by micro drop with pure oil. Light curtain system. SPINDLE’S AXIS (A) CAN BE POSITIONED ELECTRONICALLY AT EVERY DEGREE INCLUDED IN 180° ±90° AT THE SAME TIME CAN BE TURNED (C) ON 360°. Milling dimensions: X=6900mm, Y=650mm, Z=300mm
