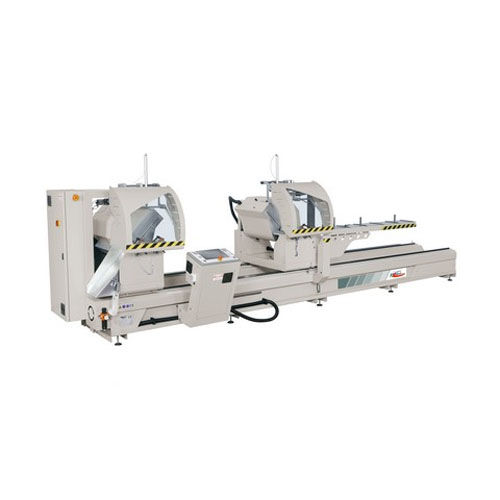

Aluminum double-head miter saw EXTRA A-RV-600

High quality double head cutting off machine with a fixed sawing head on the left and one movable on the right side. Automatic positioning of the movable head and automatic tilting of the sawing units. Maximal accuracy by positioning the movable sawing head due to LM guides caged balls placed on the frame. Motorised tilting of the sawing heads 20°/45°/90°/-45° and intermediate degrees too. High cutting performance, movable roller table support 2,3 mtrs. length. Lubrication by Micro Drop with pure oil. Cutting zone protected by full guards. Brushless motor for axe positioning. Numerical control with 3 positioning axes of the latest generation integrated in the function of a personal computer with 10,4” TFT colour display TOUCH SCREEN, software for controlling highly ergonomic and of easiest use. Wide extension thanks to the gates RJ45-USB (connects floppies, printers, portables USB keys etc etc) -RS 232 which allows easy up to date software and easy connexions with other company’s relays (CNC machines, AN). Possibility of tele-assistance via internet. Three phase Motor, 2800rpm, 3kW.
