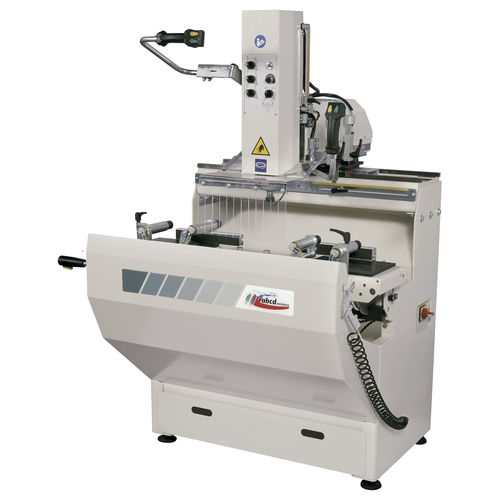

Aluminum copy router STEEL FLEX PLUS3-axisvertical
Add to favorites
Compare this product
Characteristics
- Materials to be tapped
- for aluminum
- Other characteristics
- 3-axis, vertical
- Rotational speed
Max.: 12,000 rpm
(75,398 rad.min-1)Min.: 4,000 rpm
(25,133 rad.min-1)- Power
0.9 kW
(1.22 hp)
Description
Copy router operating on 3 axes equipped with turning table at -90°/-45°/0°/+45°/+90° with 3 pneumatic tracer points for working on 3 sides of the profile.Equipped with Threephase electrospindle with variable speed adjusted by inverter and potentiometer (from 4000 to 12000rpm). Power 0,9 Kw already at 6000 rpm, excellent for the heavy routings at low speed (i.e. steel). Stroke: X= 640 mm, Y= 350 mm, Z=260mm. Movement of the axis on linear guides. With 4 movable pneumatic clamps. Specially addressed for working on inox, steel and aluminium.
