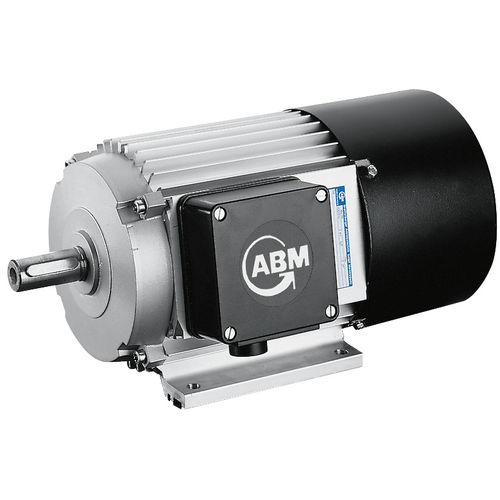

Induction motor MEDIUM-LINE, PREMIUM-LINE
ACATEXIP55

Induction motor - MEDIUM-LINE, PREMIUM-LINE - ABM Greiffenberger Antriebstechnik GmbH - AC / ATEX / IP55
Induction motor - MEDIUM-LINE, PREMIUM-LINE - ABM Greiffenberger Antriebstechnik GmbH - AC / ATEX / IP55
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
induction
Protection class
ATEX, IP55, IP66, maintenance-free
Configuration
with brake
Number of poles
4-pole, 8-pole, 6-pole, 2-pole
Cooling mechanism
self-ventilated, forced-ventilated
Applications
industrial
Other characteristics
high-efficiency, with integrated inverter
Power

Min.: 0.09 kW
(0.122 hp)

Max.: 30 kW
(40.789 hp)

Description

Advantages • High efficiency —› Economical energy consumption • Extruded aluminium profile —› Corrosion protection —› Several ratings per frame size • Maintenance-free Technical Data MEDIUM-LINE,PREMIUM-LINE Motor Type: 1- or 3-phase asynchronous motor Rated Output: 0.09 - 30 kW, 0.09 - 18.5 kW Rated Voltage: 230/240 - 265/480 V, 115 - 575 V Frequency: 50 / 60 Hz, variable Number of poles: 2 - 8 pole Protection Class: IP55, Up to IP66 Cooling: Self-ventilated, Self- or non-ventilated, forced ventilated Mounting Options, Foot and flange mounting Options, Two Speed Motors Brake and encoder mounting Motor mounted inverter ATEX-execution
