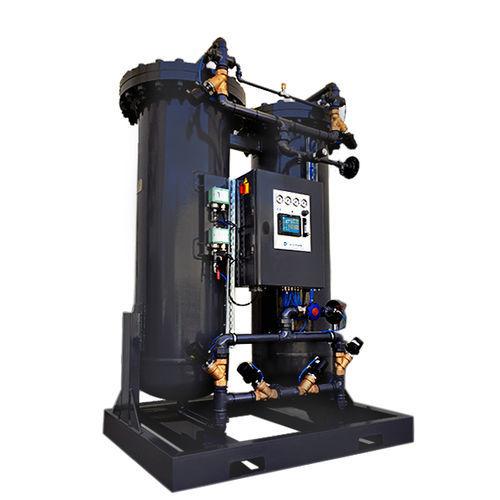

High-purity nitrogen generator GA

agricultureindustrialPSA

A nitrogen generator is an industrial system used to separate nitrogen from other gases in the ambient air, using a compressed air inlet, providing a varying flow and purity depending on the various applications. Today, PSA and membrane systems are an appealing supply mode for a wide range of volumes, purities and applications. The former are based on adsorption, while the latter are based on selective permeation. ABSOGER produces two types of nitrogen-generating technologies, in order to fully accommodate the client’s needs: PSA (Pressure Swing Adsorption) technology and membranes. PSA technology separates oxygen from ambient air under high pressure, removing nitrogen and other gases through an activated carbon molecular sieve. PSA technology (Pressure Swing Adsorption): Adsorption by pressure variation. Compressed air drying and purification 2-column generators with CMS activated carbon Continuous generation of stable, high-purity nitrogen. High purity levels (>99.9%). Gen2ius: Technical specifications Purity of the nitrogen produced: from 95% to 99,999% Nitrogen flow rate: 1 to 130 Nm3/h – higher flow rates available on request Nitrogen outlet pressure: 5 to 330 bar Number of columns can be increased Low energy consumption Long-lasting activated carbons GA: Technical specifications Purity of the nitrogen produced: from 95% to 99.9999% Nitrogen flow rate: 1 to 2000 Nm3/h – higher flow rates available on request Nitrogen outlet pressure: 5 to 330 bar Low energy consumption Long-lasting activated carbons
