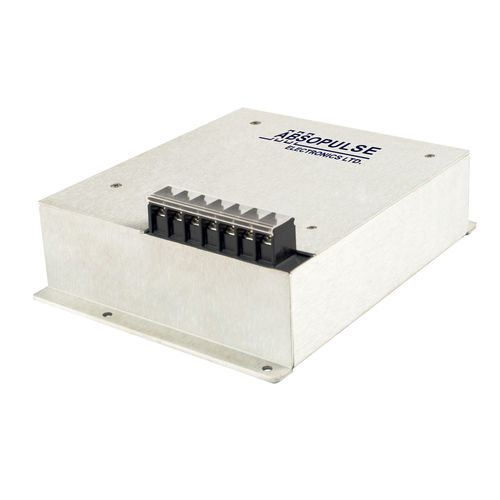

AC/DC power supply PPF 250-P59XW series

single-outputswitchingencapsulated

This fully encapsulated, industrial quality power converter utilizes field-proven technology to generate the required output power. It is a mature design with a track record in numerous applications. The unit is entirely potted with a thermally conductive MIL-grade silicon rubber compound which provides protection from moisture and other contaminants, as well as immunity to shock and vibration. Designed for operation in harsh environments; PFC input with universal (95-264Vac) range; DC-input of 95-350Vdc range also available; Full encapsulation with thermally conductive silicon potting compound; Output: 12Vdc, 24Vdc, 48Vdc, 72Vdc, 110Vdc, 125Vdc continuous, or custom; Line/load regulation: ±1% zero-load to full-load; EMI: EN55022 Class A with 6dB margins; Cooling: conduction and natural convection; -40°C to +70°C operating temperature range for full specification;
