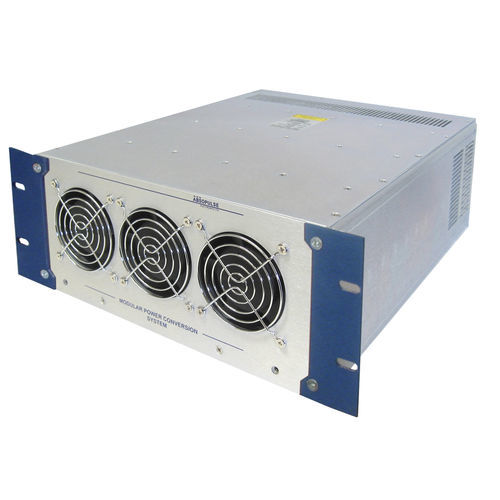

PWM frequency converter FC 2K-3U5 series

3-phaserack-mountfor industrial applications

The FC 2K-3U5 series of rugged AC-AC frequency converters deliver up to 2kVA pure sine wave output voltage from 115V, 230Vac or a universal 95-264Vac PFC input. The units are suitable for applications that require clean, reliable AC-power in power utilities, industrial automation, mining, marine and transportation applications. Key Specifications: 2000W industrial quality AC-AC frequency converters; Input: 115V or 230Vac ±15%, 47 … 410Hz. Factory set for required input. 95-264Vac (Universal) 47… 63Hz input with PFC is also available. Consult factory for other inputs; Output: 115Vac/17.3Arms/60Hz or 400Hz continuous; or 230Vac/8.6Arms/50Hz continuous. Output neutral is connected to the chassis internally. Isolated floating output optional; EMI: EN55032 Class A with margins; MTBF: Min. 90,000 hours at 45ºC. Demonstrated MTBF is significantly higher (fans excluded).
