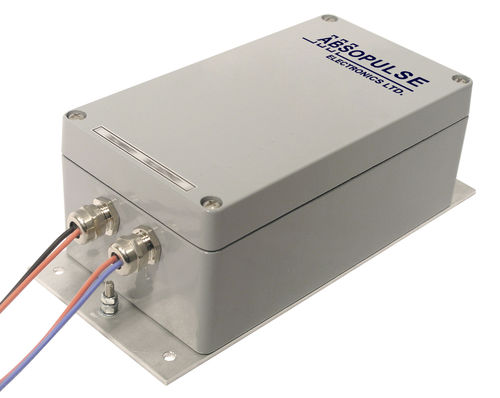

Sine wave DC/AC inverter RSI 100-D1 series

electronic equipmentfor railway applicationscompact

This railway quality DC-AC inverter utilizes field proven, microprocessor controlled high frequency PWM technology to generate the required output power, with pure sign wave output voltage. The units are packaged in waterproof, robust die cast aluminum IP66 enclosures. The input and output are via sealed cable glands, circular connectors or custom connections. The internal module is ruggedized and conformal coated for increased immunity to high levels of shock and vibration. Cooling is by internal conduction to the walls of the IP66 enclosure with additional convection via the outside surface. If installed on a heat-sinking surface, cooling is further enhanced and the converters achieve higher output power. The high frequency conversion enables a compact construction, low weight and high efficiency. The input and output are filtered for low noise. Full electronic protection, low component count, large design headroom, and the use of components with established reliability contribute to a high MTBF. The unit meets the requirements of EN50155 for electronic equipment used on railway rolling stock. It is manufactured at our plant under strict quality control. Customized versions are available. An industrial version suitable for other transportation, mining, marine, oilrigs, military and other harsh environments is also available.
